Description

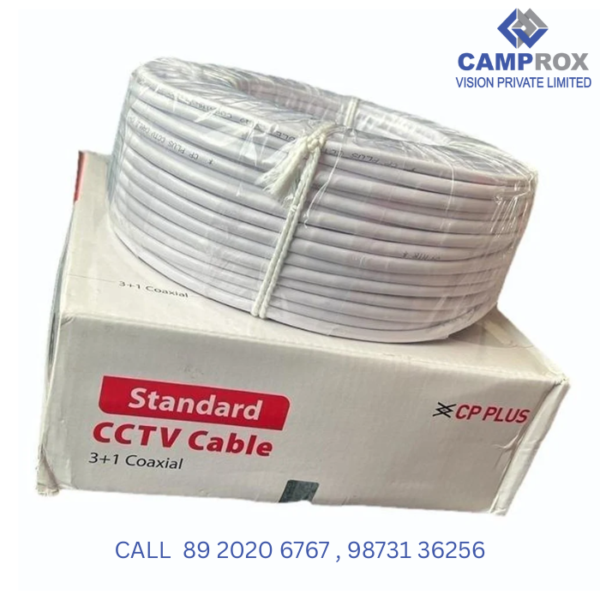

The CP PLUS 3+1 CCTV Cable, available in a 90-meter length, is designed to facilitate video, power, and audio transmission for CCTV surveillance systems. Below are its key specifications:
General Specifications:
- Cable Length: 90 meters
- Conductor Material: Solid Annealed Bare Copper
- Insulation Material: PVC
- Outer Jacket Material: PVC
- Color: White
Video Core:
- Conductor Diameter: 0.5 ± 0.01 mm
- Insulation Diameter: 1.5 mm
Power Cores:
- Number of Cores: 3
- Conductor Diameter: 0.52 ± 0.02 mm
- Insulation Diameter: 1.35 ± 0.1 mm
Shielding:
- Braiding Material: Aluminum Alloy
- Overall Diameter: Approximately 5.5 mm
Additional Features:
- Compatibility: Supports long-distance transmission for 2MP HD cameras and short-distance transmission for 5MP HD cameras
- Application: Suitable for transmitting video, power, and audio signals in CCTV installations
This cable is specifically designed for the Indian market, ensuring reliable performance and durability in various surveillance setups.
