Description

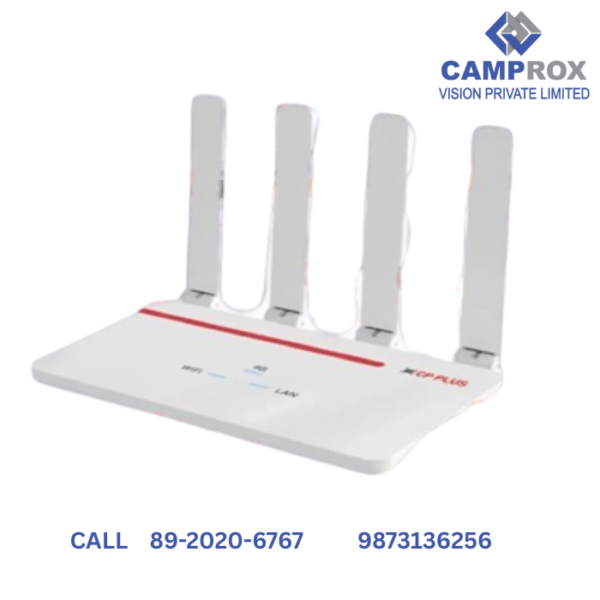

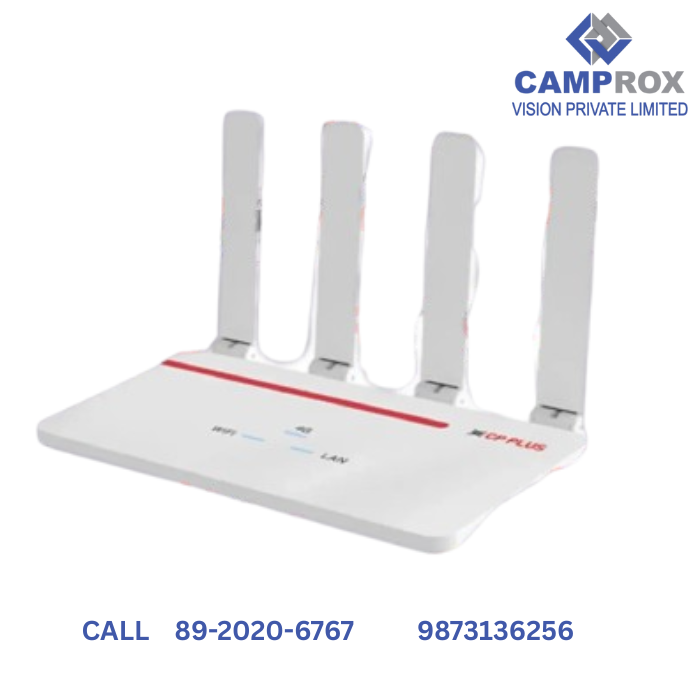

The CP PLUS 4G Router with Quad Antennas (CP-XR-DE4C-S) is engineered to provide robust and high-speed internet connectivity, especially in areas where traditional broadband services are limited. Below are its detailed specifications:
Network Compatibility:
- Standards: Compatible with WCDMA, FDD-LTE, and TDD-LTE networks.
- Frequency Bands:
- LTE: Bands B1/3/5/7/8/20/38/40/41.
- WCDMA: Bands B1/5/8.
Wireless Features:
- Wi-Fi Frequency: 2.4 GHz, supporting IEEE 802.11 b/g standards.
- Maximum Wi-Fi Users: Supports up to 8 simultaneous users.
- Wi-Fi Mode: Operates in Station mode.
- Wi-Fi Security: Supports OPEN, WPA-PSK, and WPA2-PSK encryption methods.
4G Performance:
- Category: LTE CAT 4.
- Maximum Speeds: Download up to 150 Mbps; Upload up to 50 Mbps.
SIM and Antenna:
- SIM Slot: Micro SIM card support.
- Antenna: Equipped with external antennas for enhanced signal reception.
Additional Features:
- SMS Support: Enables sending and receiving of SMS messages.
- IPv4/IPv6: Compatible with both IPv4 and IPv6 protocols.
- Data Statistics: Provides data usage monitoring.
- SIM Lock: Supports SIM lock functionality.
- HTTP & DMZ: Supports HTTP and DMZ settings for advanced configurations.
Physical Specifications:
- Ethernet Port: Includes 1 LAN port (10BaseT/100Base automatic adaptive).
- Buttons: Reset and WPS buttons for easy setup and configuration.
- LED Indicators: System/Wi-Fi status, LTE/Internet status, Interface status, and Signal Strength indicators.
- Power Supply: DC 12V/1A.
- Power Consumption: Less than 10W.
- Dimensions:
- Antenna folded: 186mm x 106mm x 35mm.
- Antenna unfolded: 186mm x 106mm x 135mm.
- Weight: Approximately 300g.
Environmental Conditions:
- Operating Temperature: -10°C to +65°C.
- Storage Temperature: -20°C to +85°C.
- Humidity: 5% to 95% non-condensing.
This router is designed to deliver reliable and high-speed internet access, making it suitable for both home and small office environments, particularly in locations where wired broadband is unavailable.
