CP PLUS IP BULLET 5.0MP COLOR AUDIO(CP-UNC-TA51PL3C-L-Y)

Description

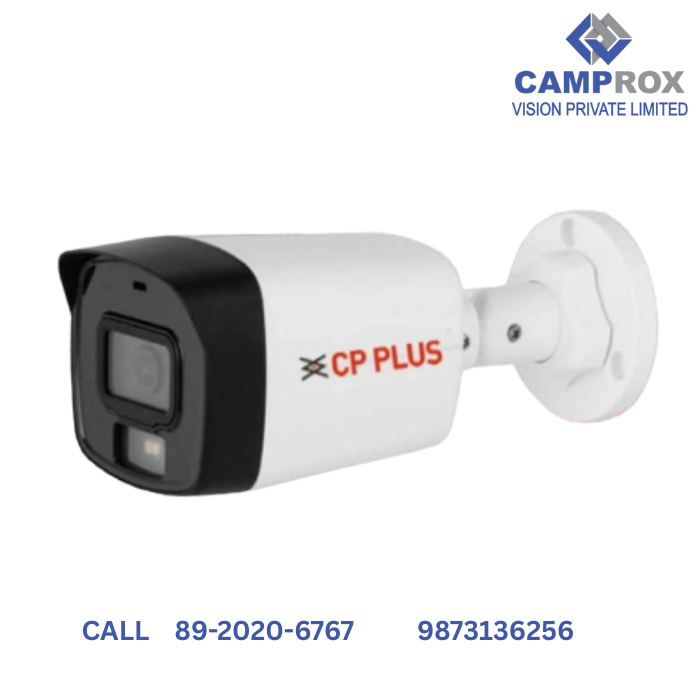

CP PLUS CP-UNC-TA51PL3C-L-Y 5MP IP Bullet Camera

The CP PLUS CP-UNC-TA51PL3C-L-Y is a 5MP IP Bullet Camera designed for high-definition surveillance with advanced features such as color night vision and built-in audio.

📷 Camera Specifications

• Image Sensor: 1/2.9″ 5MP Progressive Scan CMOS

• Effective Pixels: 2880 (H) × 1620 (V)

• Minimum Illumination: 0.03 Lux @ F2.0 (Color), 0.003 Lux @ F2.0 (B/W), 0 Lux with IR on

• Shutter Speed: Auto/Manual, 1/3–1/100,000s

• Lens: 3.6mm fixed focal length (2.8mm optional)

• Aperture: F2.0

• Field of View: 3.6mm lens: Horizontal 78°, Vertical 43°, Diagonal 92°

• IR Range: Up to 30 meters

• Day/Night Mode: Auto(ICR)/Color/B/W

• Noise Reduction: 3D-DNR

• Wide Dynamic Range: DWDR

• Backlight Compensation: BLC / HLC

• Motion Detection: Enabled (4 configurable areas)

• Privacy Masking: Supports up to 4 areas

🎥 Video & Encoding

• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• Bit Rate: H.265: 12–6144 Kbps; H.264: 32–6144 Kbps

• Frame Rate:

  • Main Stream: 2880 × 1620 @ 1–20 fps; 2688 × 1520 @ 1–25/30 fps

  • Sub Stream: 704 × 576 @ 1–25 fps; 704 × 480 @ 1–30 fps

• Resolution Options: 5MP, 4MP, 3MP, 2MP, 1.3MP, 1MP, D1, VGA, CIF

• Region of Interest (ROI): Supports 4 configurable areas

🌐 Network & Compatibility

• Protocols Supported: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast, ONVIF (Profile S/Profile T), CGI

• Ethernet Interface: RJ-45 (10/100Base-T)

• User Access: Supports up to 6 users with a total bandwidth of 24 Mbps

• Mobile Access: Compatible with iCMOB and gCMOB apps for iOS and Android

• Browser Support: Internet Explorer, Chrome, Firefox

🔊 Audio Features

• Built-in Microphone: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC

⚙️ Physical & Environmental

• Power Supply: 12V DC or PoE (802.3af)

• Power Consumption: <4.5W

• Operating Temperature: -40°C to +50°C

• Operating Humidity: ≤95% RH

• Ingress Protection: IP67-rated for weather resistance

• Casing Material: Plastic

• Dimensions: Approximately 162 mm × 70 mm × 40 mm

• Weight: Approximately 320 g

🔐 Security Features

• Cybersecurity: Supports configuration encryption, trusted execution, HTTPS, security logs, WSSE, and X.509 certificate management

• Alarm Events: Detects network disconnection, IP conflicts, illegal access, motion detection, video tampering, audio detection, and security exceptions
