Description

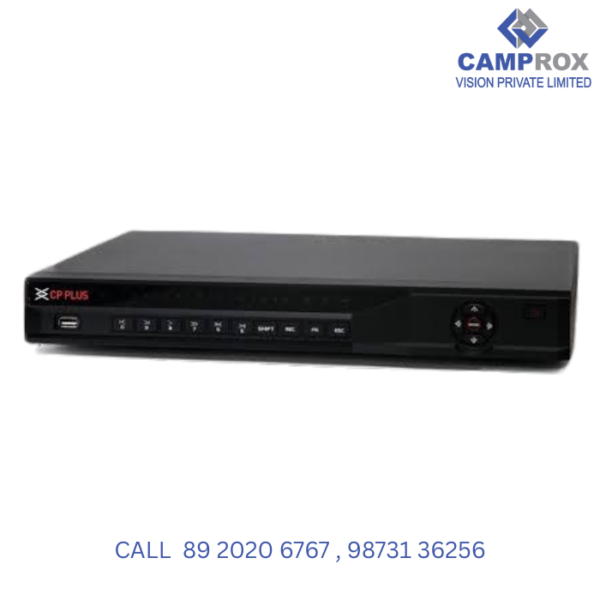

The CP PLUS CP-UVR-3201E2-I is a 32-channel 1080N/720P Digital Video Recorder (DVR) designed for extensive surveillance applications. Below are its key specifications:
Processor and Operating System:
- Industrial-grade processor running on Embedded LINUX.
Video Input and Output:
- Supports 32 channels via BNC ports, auto-adaptive to HDCVI, AHD, TVI, and CVBS formats.
- Equipped with 1 HDMI, 1 VGA, and 1 TV output for simultaneous video display.
- Supports video resolutions up to 1920×1080.
Video Compression and Recording:
- Utilizes AI Instastream, Instastream, H.265, H.264+, and H.264 dual-stream video compression formats.
- Main Stream: First channel supports 1080N/720P at 1–25/30 fps; other channels support 1080N/720P at 1–15 fps; 960H/D1/CIF at 1–25/30 fps.
- Sub Stream: Supports CIF at 1–7 fps.
Audio Features:
- Includes 1 audio input and 1 audio output, both via RCA connectors.
- Supports two-way talk functionality, sharing the same audio input with the first channel.
- Audio compression formats: G.711A, G.711U, PCM.
Storage:
- Provides 2 SATA ports, each supporting up to 16TB capacity.
Network and Protocols:
- Features 1 RJ-45 port (10/100/1000 Mbps) for network connectivity.
- Supports various protocols including HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, InstaOn, ONVIF 21.06, and CGI.
Additional Features:
- Supports up to 16 IP camera inputs, each channel up to 6MP, with a maximum incoming bandwidth of 128 Mbps.
- Supports 8-channel AI Instastream and up to 16 channels of video stream (analog channel) SMD Plus.
- Supports mobile software: iCMOB, gCMOB.
- CMS software: KVMS Pro.
Power and Environmental Specifications:
- Operates on DC 12V/4A power supply.
- Power consumption is lower than 12W (without HDD).
- Operating temperature ranges from -10°C to +55°C (+14°F to +131°F), with 0% to 90% relative humidity.
Dimensions and Weight:
- Measures 375.0 mm × 289.4 mm × 53.0 mm (W × D × H).
- Net weight is 1.92 kg (without HDD).
These specifications make the CP-UVR-3201E2-I a robust choice for large-scale surveillance setups, offering compatibility with various camera formats and advanced features for enhanced security management.
