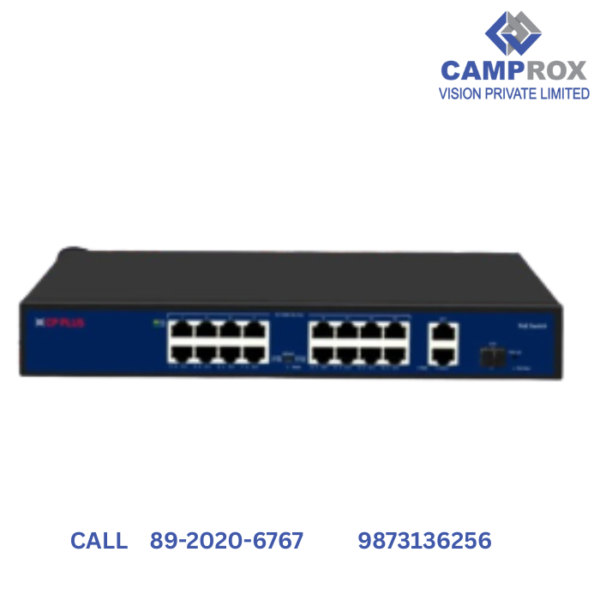

CP PLUS POE SWITCH 16+2CH UPLINK GIGA(CP-DNW-HPU16G2F1-20)

Description

CP PLUS 16+2 Port Gigabit PoE Switch (CP-DNW-HPU16G2F1-20) – Specifications & Features

Enhance your surveillance system with the CP PLUS CP-DNW-HPU16G2F1-20, a high-performance 16+2 channel full gigabit PoE switch, perfect for professional CCTV setups. Whether you’re building the best CCTV in Rohini or expanding security in CCTV Budh Vihar, this PoE switch ensures powerful and efficient camera connectivity with superior stability.

🔧 Key Specifications:

• Model: CP-DNW-HPU16G2F1-20

• Ports Configuration:

  • 16 × 10/100/1000 Mbps PoE Ports

  • 2 × 10/100/1000 Mbps Uplink Ports

  • 1 × SFP Fiber Port

• PoE Standard: IEEE 802.3af / 802.3at

• PoE Output per Port: Up to 30W

• Total PoE Budget: Up to 250W

• Switching Capacity: 36 Gbps

• Transmission Distance: Up to 250 meters (in extend mode)

• MAC Address Table: 8K

• Surge Protection: 6KV

• Power Supply: AC 100~240V, 50/60Hz

• Operating Temperature: -10°C to +55°C

• Installation: Desktop or rack-mountable

• LED Indicators: Power, Link/Act, PoE Status

🌟 Key Features:

• 16 PoE+ ports to power IP cameras directly

• Dual gigabit uplinks + 1 SFP port for high-speed data transfer

• Long-range PoE support—ideal for large premises and outdoor installations

• Advanced lightning protection (6KV) for added system safety

• Compatible with CP Plus DVR, NVRs, and IP cameras

• Supports plug-and-play configuration for easy setup

• Excellent choice for commercial, residential, or industrial surveillance setups

• Perfect for users searching CCTV installation near me in Rohini and Budh Vihar

If you want to build a robust CCTV network using reliable infrastructure, the CP-DNW-HPU16G2F1-20 is the smart choice. Ideal for projects requiring stable power and connectivity, it’s a preferred solution for those installing the best CCTV in Rohini or upgrading from a CP Plus DVR system.
