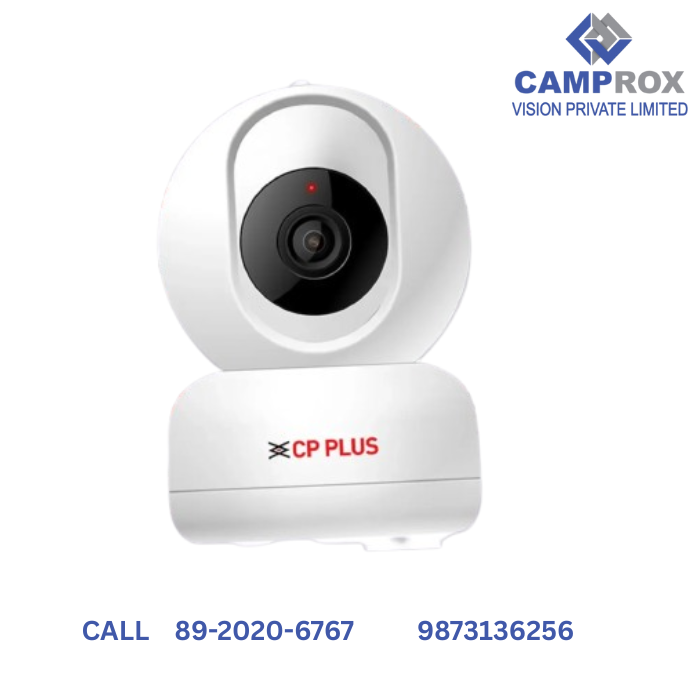

CP PLUS WIFI ROBO 2.0MP(EZ-P23)

The CP PLUS Wi-Fi Robo 2.0MP (EZ-P23) is an indoor wireless pan-tilt camera designed to provide comprehensive surveillance with high-definition video quality and advanced features. Below are its detailed specifications:

Camera Features:

  • Image Sensor: 1/2.9″ 2 Megapixel CMOS sensor.
  • Effective Pixels: 1920(H) x 1080(V).
  • Scanning System: Progressive.
  • Electronic Shutter Speed: Auto/Manual, 1/3(4)~1/100000s.
  • Minimum Illumination: 0.1Lux/F2.0 (Color), 0Lux/F2.0 (IR on).
  • S/N Ratio: More than 50dB.
  • IR Distance: Up to 10 meters.
Add to Wishlist
Add to Wishlist

Description

The CP PLUS Wi-Fi Robo 2.0MP (EZ-P23) is an indoor wireless pan-tilt camera designed to provide comprehensive surveillance with high-definition video quality and advanced features. Below are its detailed specifications:

Camera Features:

  • Image Sensor: 1/2.9″ 2 Megapixel CMOS sensor.
  • Effective Pixels: 1920(H) x 1080(V).
  • Scanning System: Progressive.
  • Electronic Shutter Speed: Auto/Manual, 1/3(4)~1/100000s.
  • Minimum Illumination: 0.1Lux/F2.0 (Color), 0Lux/F2.0 (IR on).
  • S/N Ratio: More than 50dB.
  • IR Distance: Up to 10 meters.

Lens:

  • Lens Type: Fixed.
  • Mount Type: M12.
  • Focal Length: 3.6mm.
  • Aperture: F2.0.
  • Field of View: Horizontal: 93°, Vertical: 48°, Diagonal: 115°.

Video & Audio:

  • Compression: H.264.
  • Frame Rate: Main Stream: 2MP (1920×1080) at 125fps; Sub Stream: 720P (1280×720) at 125fps.
  • Bit Rate: 32Kbps~2Mbps.
  • Audio Input/Output: Built-in microphone and speaker.

Pan/Tilt:

  • Pan Range: 0°~355°.
  • Tilt Range: -5°~90°.
  • Manual Control Speed: Pan: 100°/s; Tilt: 60°/s.
  • Preset Speed: Pan: 100°/s; Tilt: 60°/s.
  • Presets: 8.

Network:

  • Wi-Fi: IEEE802.11b/g/n, 50m open field.
  • Interoperability: ONVIF.
  • Streaming Method: Unicast.
  • Max. User Access: 4 users.

Storage:

  • Micro SD Card: Supports up to 128GB.
  • NAS: Supported.

General:

  • Power Supply: DC 5V/1A.
  • Power Consumption: <5W.
  • Operating Conditions: -10°C~+45°C, Less than 95% RH.
  • Dimensions: 94.5mm x 94.5mm x 94.5mm.
  • Weight: <250g.

This camera is suitable for monitoring homes, offices, and other indoor environments, providing reliable security with its high-definition video quality and advanced features.
