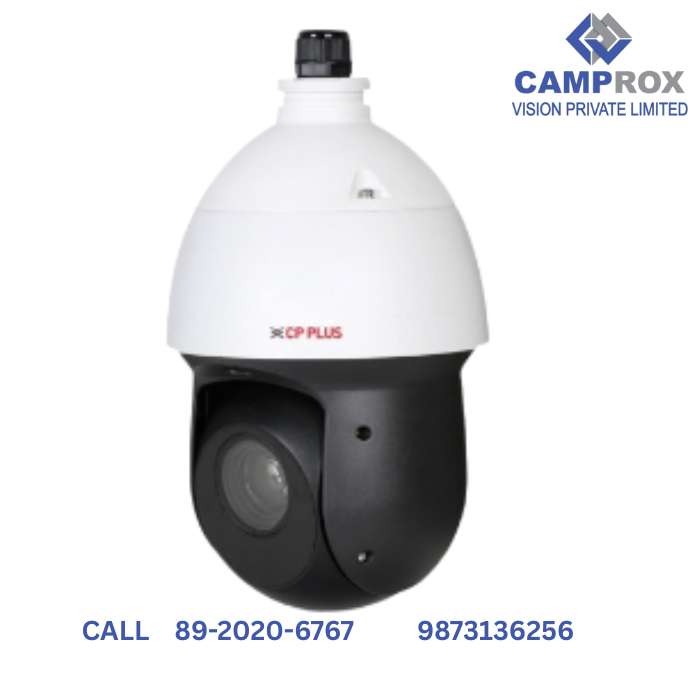

CP PLUS IP SPEED DOME 2.0MP 25X ZOOM(CP-UNP-D2521L10-DP)

Description

The CP PLUS CP-UNP-D2521L10-DP is a 2MP IP Speed Dome Camera designed for comprehensive surveillance needs. Featuring a 25x optical zoom and 16x digital zoom, it ensures detailed monitoring over vast areas. Its robust PTZ (Pan-Tilt-Zoom) capabilities, combined with advanced imaging technologies, make it suitable for various environments, including large outdoor spaces and critical infrastructure.

📷 Camera Specifications

• Image Sensor: 1/2.8″ 2MP CMOS

• Effective Pixels: 1920(H) × 1080(V)

• Minimum Illumination: Color: 0.005 Lux @ F1.6; B/W: 0.0005 Lux @ F1.6; 0 Lux with IR on

• Optical Zoom: 25x (4.8mm–120mm)

• Digital Zoom: 16x

• Angle of View: Horizontal: 62.8° to 2.6°

• IR Range: Up to 100 meters

• Pan Range: 0° to 360° endless

• Tilt Range: -15° to 90° with auto flip

• Pan Speed: 0.1° to 200°/s

• Tilt Speed: 0.1° to 120°/s

• Presets: Up to 300

• Patterns/Tours: 5 patterns, 8 tours, 8 auto scans

🎥 Video & Imaging

• Resolution: 1080P (1920×1080), 720P (1280×720), D1, CIF

• Frame Rate: Up to 25/30 fps @ 1080P

• Video Compression: H.265+, H.265, H.264+, H.264

• WDR: 120dB

• Noise Reduction: 3D DNR

• Day/Night Mode: Auto (ICR), Color, B/W

• Defog: Supported

• Privacy Masking: Up to 24 areas

🌐 Network & Smart Features

• Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF Profile S&G, API

• Smart Detection: Tripwire, Intrusion, Abandoned/Missing Object, Face Detection

• Alarm I/O: 2 inputs / 1 output

• Audio I/O: 1 input / 1 output

• Storage: Supports up to 128GB MicroSD

• Mobile Access: iCMOB, gCMOB apps

• CMS Software: KVMS

⚙️ Physical & Environmental

• Ingress Protection: IP66-rated weatherproof

• Operating Temperature: -40°C to +70°C

• Power Supply: 12V DC / PoE+ (802.3at)

• Power Consumption: 13W (normal), 20W (with IR on)

• Dimensions: Φ160 mm × 295 mm

• Weight: Approximately 4 kg
